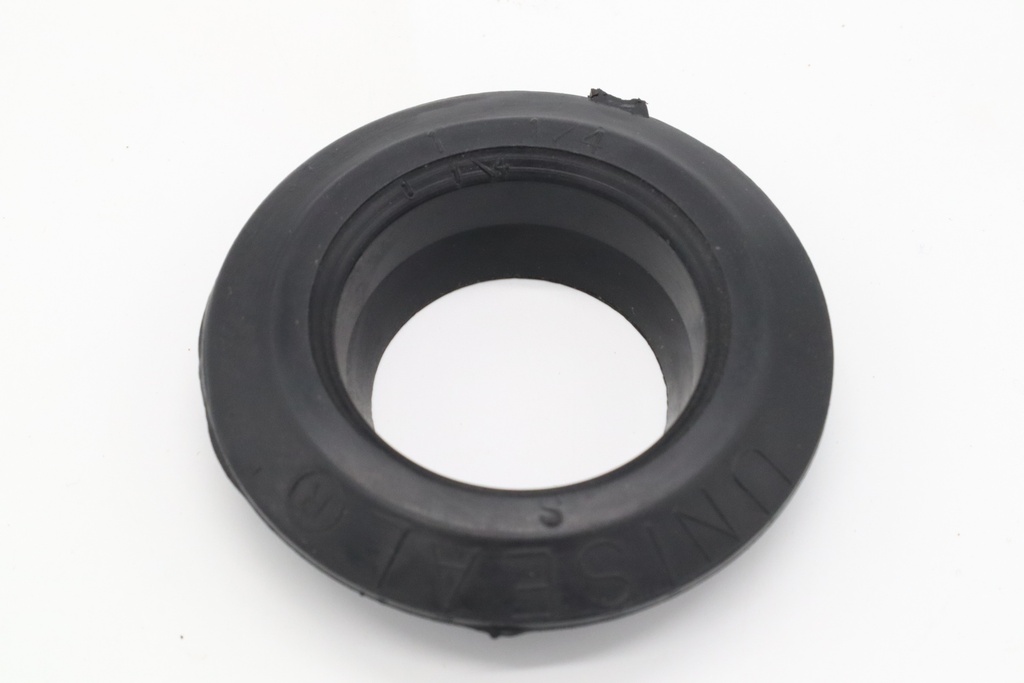

Uniseal U125 - 1.1/4”(DN32), Better Alternative to Tank-Connector & Bulk-Head Plumbing Fitting (PipeOD-1.660”/42mm & HolesawSize-2.00”/50.8mm)
Uniseal® Injection Molded Liquid Tight Connectors
Uniseal® products replace traditional plumbing hardware with a single injection molded unit vs. several components. Traditional seals require multiple parts such as, rigid flanges, bolts, washers, o-rings, along with long assembly times and high production costs.
The ability of the Uniseal® to be used on flat or curved surfaces has allowed for its use in many industries including: wastewater management, irrigation, agricultural, electrical, rainwater recycling, hydroponics, and many more.
The greatest asset to Uniseal® products is that they are a quicker and easier installation process. A hole is cut in the side of the tank, and then the rubbery black Uniseal® is inserted. Next, a slippery detergent film (i.e. dish soap) is applied to the exterior of the pipe. The pipe is then pushed through the seal completing the installation. When the pipe is pushed through the rubber-like Uniseal® from the outside, the Uniseal® becomes thin enough to allow the pipe to slip through. With this simple design the Uniseal® solves many complex problems.
ldquo;Alcryn”® melt processible rubber is used to make Uniseal® products because it creates a tighter seal, can be processed faster, and is compatible with both water and oil based materials. It also has a coefficient of friction roughly three times greater than competing materials, which creates a better seal overall.
- UNISEAL® reduces manufacturing costs. It replaces all the old hardware with a single injection molded unit requiring no component parts. Provides a liquid tight connection.
- UNISEAL® is now used in the Building, Plumbing, Agriculture, Aquaculture, Marine, R.V. and Petrochemical Industries.
- Standard UNISEAL®S are made to fit PVC and steel pipes 3/16″ to 6″ through wall thickness of 1/8″ to 1/2″.
- With Design and sophisticated material (ALCRYN®) Original UNISEAL lasts very very long, when used in accordance with the manufacturer’s instructions.
- Every UNISEAL® manufactured is branded: Don’t be fooled by imitations.
Instructions:
- Cut hole to the holesaw size indicated for the UNISEAL® you are using. (See specification sheet) Example: 3″ UNISEAL® = 4″ Hole (Requires Holesaw Cut).
- Insure that the hole is clean cut with no sharp edges. Irregularities could cause poor sealing and ultimate leakage.
- Insert the UNISEAL® into the hole with the wide side facing the pipe to be inserted.
- Make certain that the pipe end to be inserted is clean cut. File the edges so that there are no sharp points to cut the UNISEAL®.
- Using detergent, lubricate the outside of the pipe end to be inserted, then push the pipe through the UNISEAL® from the large flange side. The detergent will be squeezed off as the pipe passes through the UNISEAL®. The co-efficient of friction of the rubber holds the pipe tightly in place.
- Made in the United States of America.
Specifications
| Brand | Uniseal |
